MoTeC C125 Colour Dash Display and Logger

  • Sale
  • Regular price £1,763.01

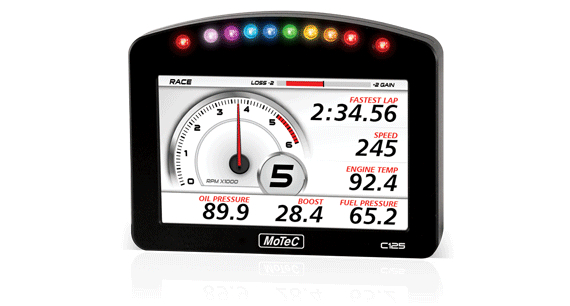

The C125 is an exciting addition to MoTeC's new range of colour Displays and Display Loggers. Striking in design and powerful in functionality, the C125 offers display, data logging, auxiliary control and programmable LEDs all in one compact device. The vivid 125mm screen (approx 5") is high resolution, ultra bright and anti-reflective for easy reading in direct sunlight. Numerous selectable layouts are provided with superb graphics that cater for day and night viewing. Within these layouts users can configure the channels and labels to suit their application. An array of ten full colour LEDs is integrated into the unit for use as shift lights, warning lights or other driver alerts. The colour, function and intensity of each LED is programmable, allowing users to develop their own unique strategies and sequences. The C125 is available standalone or as part of MoTeC's C125 Race Kits. The Race Display Kit and the Race Logging Kit. Both of these great value kits include, a terminated loom with ethernet comms connector, a 2 button loom to allow control of the dash and a 10Hz GPS unit. You can of course choose to purchase the display kit and add logging later via the simple MoteC upgrade code mechanism. For those customers wishing to use analogue sensors in addition to or instead of data from their ECU then the IO option enables several voltage, temperature, digital and speed inputs. Please contact us if you'd like some help specifying a solution to meet your needs. The IO option also brings with it four auxiliary outputs to control external devices. With the use of an E888 or E816 expander, additional inputs are available, making this versatile unit suitable for many applications. MoTeC's i2 data analysis software provides all the tools for comprehensive analysis of logged data.


    • All-in-one display, logger and controller eliminates the need for separate devices
    • Impressive 125mm full colour LCD screen (approx 5") - ultra bright, high resolution and anti-reflective for easy viewing, even in direct sunlight
    • Suitable for bikes, cars, marine and industrial applications
    • Compact, durable and reliable unit
    • Supports wideband Lambda from PLMs or LTCs, using Bosch LSU or NTK UEGO 5 wire sensors
    • Straightforward control for lights, fans, pumps
    • Can be used standalone or in conjunction with other electronic devices including MoTeC CAN-based Expanders

Logging and Analysis

    • Optional internal data logging of 120 MB
    • Fast download via Ethernet
    • Accommodating over 300 channels derived from a mixture of analogue and digital inputs, RS232 and CAN data channels
    • Configurable to use sensors from some existing engine management systems
    • Data analysis with i2 Standard or i2 Pro with a feature license


    • Screen: Colour TFT LCD, anti-reflective
    • Resolution: 800 x 480, anti-aliased graphics
    • Selectable fixed layouts with channel and label configurability
    • 48 user-defined, scrollable message lines with programmable overrides
    • 3 programmable 'pages', for example Practice, Warm-Up, Race
