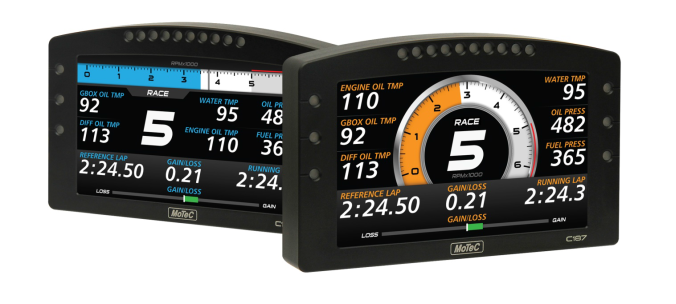

MoTeC C187 Colour Dash Logger

  • Sale
  • Regular price £4,194.44

The C187 is an exciting addition to MoTeC's new range of colour Displays and Loggers. Where the C127 is ideal for those with club level requirements, the new C187 is designed as the perfect professional level instrumentation and logging device. It comes complete with a 79 pin Autosport connector and 250 MB of logging memory as standard, which can be upgraded to 500 MB. i2 Standard is included, with a Pro Analysis option available for those wishing to exploit the advanced features provided by i2 Pro. An Advanced Functions upgrade is also available, providing more complex functionality for professional users. (See datasheet for details.) The C187 uses the same superb full colour 7" screen as the C127 ensuring incredible clarity, even in direct sunlight. The vivid 178mm screen (approx 7") is high resolution, ultra bright and anti-reflective. Numerous selectable layouts are supplied, offering various designs and colour options*. Users can customise these layouts with configurable channels, labels, measurement units and warnings. In addition, three separate ‘pages’ can be set up for different scenarios, e.g. Dyno, Qualifying and Race. An array of ten fully programmable RGB LEDs is incorporated into the unit for use as shift lights, warnings or other driver alerts. The colour, function and intensity of each LED is configurable, allowing for custom patterns and creative team strategies. A further 6 LEDs supplement these allowing for even more information to be given to the driver. The C187 can be used standalone or integrated with other electronic devices such as ECUs and MoTeC Expanders (E888, E816, VIM and SVIM). An I/O upgrade can also be purchased to activate additional inputs, including 10 extra analogue voltage inputs and 4 extra analogue temperature inputs. MoTeC Display Creator software is an option that allows users to fully customise the on-screen graphics with logos, imported images and their own creative designs. The possibilities are endless!


    • All-in-one display, logger and controller eliminates the need for separate devices
    • Impressive 178mm full colour LCD screen (approx 7") - ultra bright, high resolution and anti-reflective for easy viewing, even in direct sunlight
    • Suitable for bikes, cars, marine and industrial applications
    • Compact, durable and reliable unit
    • Straightforward control for lights, fans, pumps
    • Advanced functions option provides more complex functionality for professional users
    • Can be used standalone or in conjunction with other electronic devices including MoTeC CAN-based Expanders

Logging and Analysis

    • 250 MB logging with the option to upgrade to 500MB
    • Fast download via Ethernet
    • Accommodating over 300 channels derived from a mixture of analogue and digital inputs, RS232 and CAN data channels
    • Configurable to use sensors from some existing engine management systems
    • Data analysis with i2 Standard or i2 Pro with a feature license
    • MoTeC T2 Telemetry option to broadcast live data back to the pits


    • Screen: Colour TFT LCD, anti-reflective
    • Resolution: 800 x 480, anti-aliased graphics
    • Selectable fixed layouts with channel and label configurability
    • 48 user-defined, scrollable message lines with programmable overrides
    • 3 programmable 'pages', for example Practice, Warm-Up, Race
    • Fully configurable display software available early 2014
