Race Technology CAN ECU Interface

  • Sale
  • Regular price £150.00

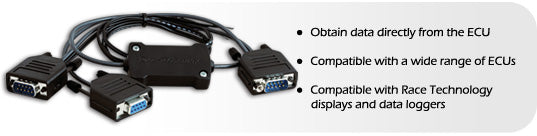

The Race Technology CAN interface is a small in-line module to allow data from your engine management system to be displayed and recorded.

Who is the CAN interface designed for?

The CAN interface is designed for anyone wishing to read vehicle or drive train sensor data directly from their ECU or other CAN device, without the need for additional sensors. Common parameters such as engine speed, coolant temperature, throttle position, etc, are normally available from the ECU, so no additional sensors would be required if using the CAN interface. This leaves the analogue input channels on your data logger free for connection to more specialised sensors, not normally monitored by your ECU (eg: suspension travel).

Key Features

  • Compatible with Race Technology displays and data loggers as stand alone units, or as part or a data logger and display system
  • Compatible with a wide range of ECUs
  • Receive data from existing vehicle sensors via your ECU - no need to add additional sensors for data logging
  • All channels from ECU are in addition to the channels already provided with the Race Technology data logger/display
  • CAN interface fully user configurable with software supplied. Programable for virtually any vehicle or ECU using standard CAN protocols. Select which channels to receive and decode
  • Upgradeable firmware.
  • Robust CNC machined aluminium enclosure (3.5 cm x 2.5 cm x 1 cm) with potted electronics
  • Supplied with cables, instruction manual and comprehensive software CD

CAN interfaces for the following ECU's can be supplied with a pre-configured CAN set-up:

  • Electromotive TEC GT
  • DTA S40
  • DTA S60
  • DTA S80
  • Tour de Force (TDF) EC1 and EC2
  • EFI Euro 6

Other ECU's are also supported but require a set up of the CAN interface, Race Data Systems can assist you in configuring your CAN interface if required.

CAN interface is supplied unterminated for connection to your ECUs CAN interface
